Spout Pouch Auto Filling Sealing Machine
Professional Food Processing Equipment
Designed for efficiency, reliability, and precision in food manufacturing processes
Detailed Product Description
Suit to fill juice , drinking jelly, flavored milk , sauce etc
All new design.
A packaging machine specially designed for filling and capping juice or drinkings jelly or some paste or some cream in the stand-up pouch automatically.
The operation cycle, from loading pouch, filling, loading caps, putting the caps , capping to pushing pouch oufeed are fully automatically performed.
It’s a necessity in mass production line.
Technical Specifications
Comprehensive technical parameters and detailed specifications
Model ZGX - 6/ ZGX - 12
Description : Auto Filling & Capping Machine
Filling nozzle : 6 filling heads / 12 filling heads
Filling hopper : For juice , gravity filling principle, automatic feeder from store tank
Packaging Speed : 6,000-7,000 pcs / hour 10,000- 12,000 pcs / hour
Filling Volume : 50 - 300ml
Power : 3-phase 4-line socket(380V50HZ)
Electric Machinery Power : 1.5kw
Air Pressure : 0.5Mpa-0.7Mpa
Max.Air Consumption : 0.6-0.8m3/min 0.8 - 1 m3/min
Benefits & Features
Discover why our machinery is the preferred choice for production excellence
Since we joined machinery making , spout pouch filling capping machine ,already coming the main machine for us , afte. 25 years experiences , we have even more production machines for you, not only machine ,we are best choice for your , You can rely on us to support you promptly, in your own language, whenever you need assistance
Working Process
Step-by-step operation workflow and detailed process explanation
1.Auto feeding bag 2.Auto filling juice 3.Auto load plastic cap 4.Auto put the cap 5.Auto servo type lock the cap 6.Auto outfeed
Machine Components Gallery
Detailed visual inspection of each component and machine part

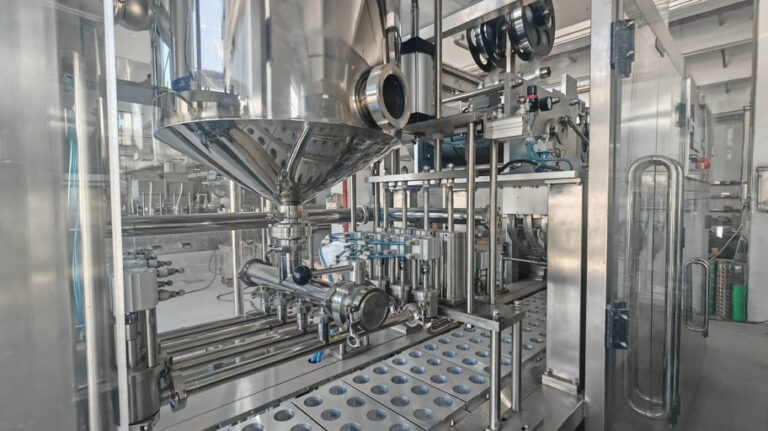

Component Detail 1
Component Detail 2
Component Detail 3
